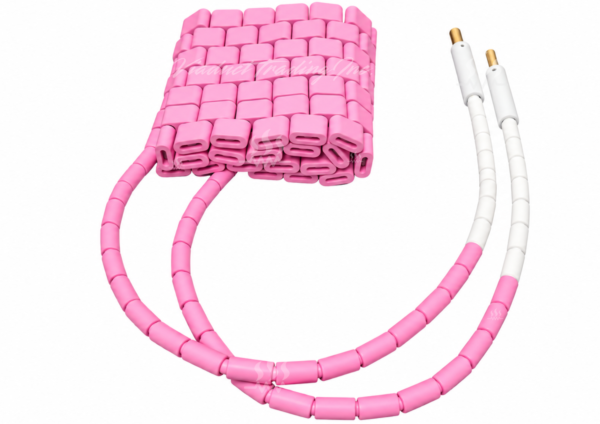

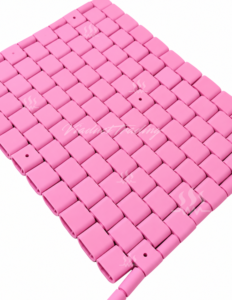

FCP-FLEXIBLE HEATER

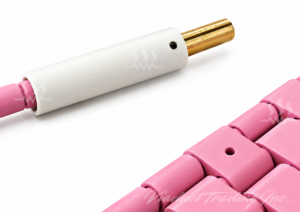

FCP-HIGH TEMPERATURE SLEEVE
FCP- TOP VIEW

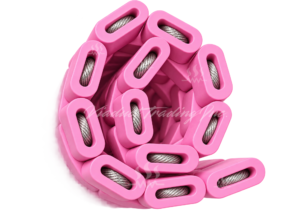

FCP- ROLLED PAD
Magnetic Flexible Ceramic Heating Pads are designed for industrial preheating and post-weld heat treatment (PWHT).
Designed for flat or curved surfaces
Fast and simplified installation
Save 67%in setup time
Built with high grade materials for
durability and performance
Available in standard and custom sizes
INDUSTRIAL HEAT TREATMENT – FCP
Maximum Flexibility.
Faster Setup.
Less Downtime.
Flexible Ceramic Heating Pads are designed for easy installation and reduced setup time in demanding industrial heating applications.

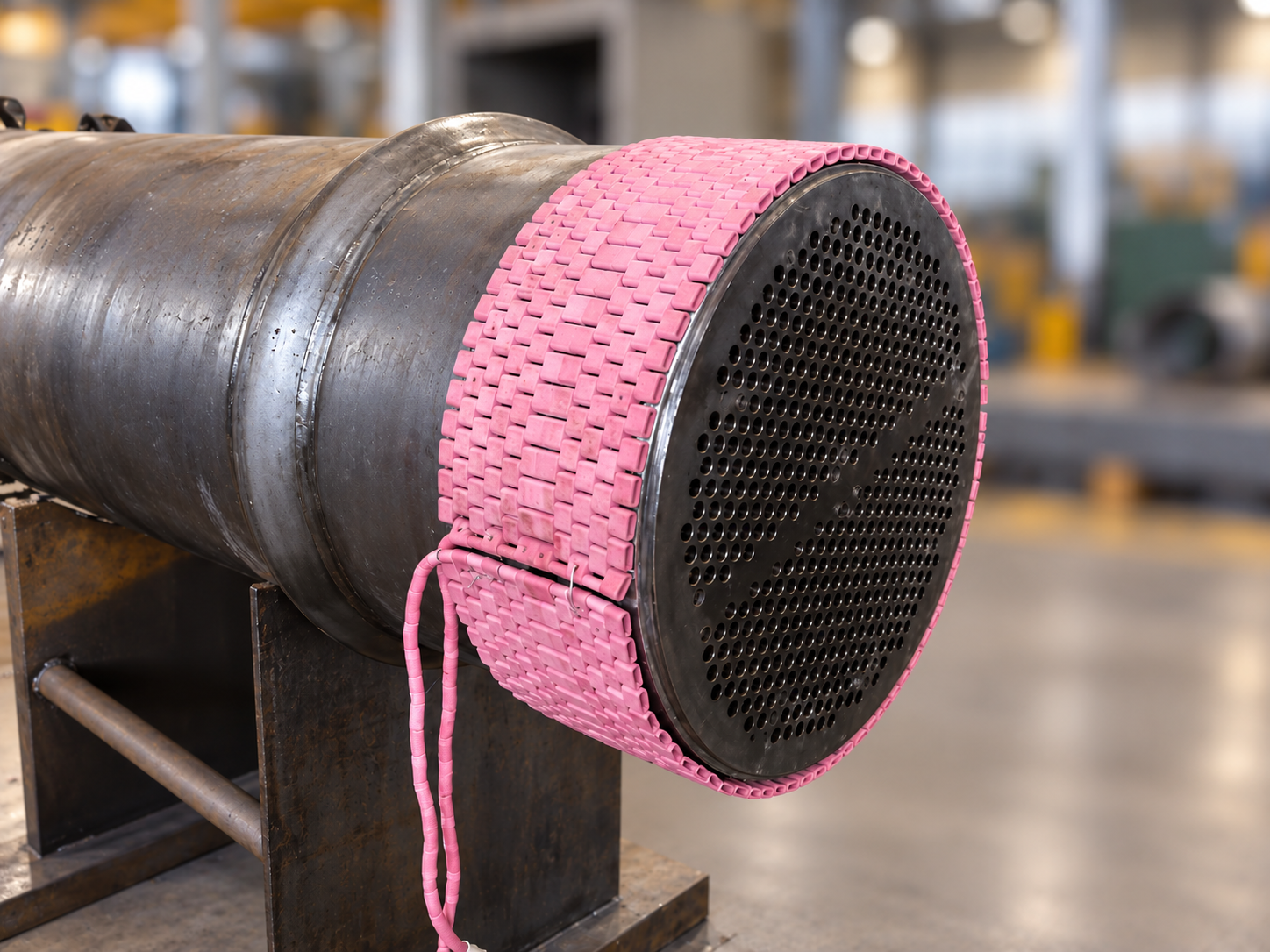

Our highly flexible pads can be bent, curved, or rolled to conform to flat, concave, and convex surfaces, making them ideal for complex fabrications.

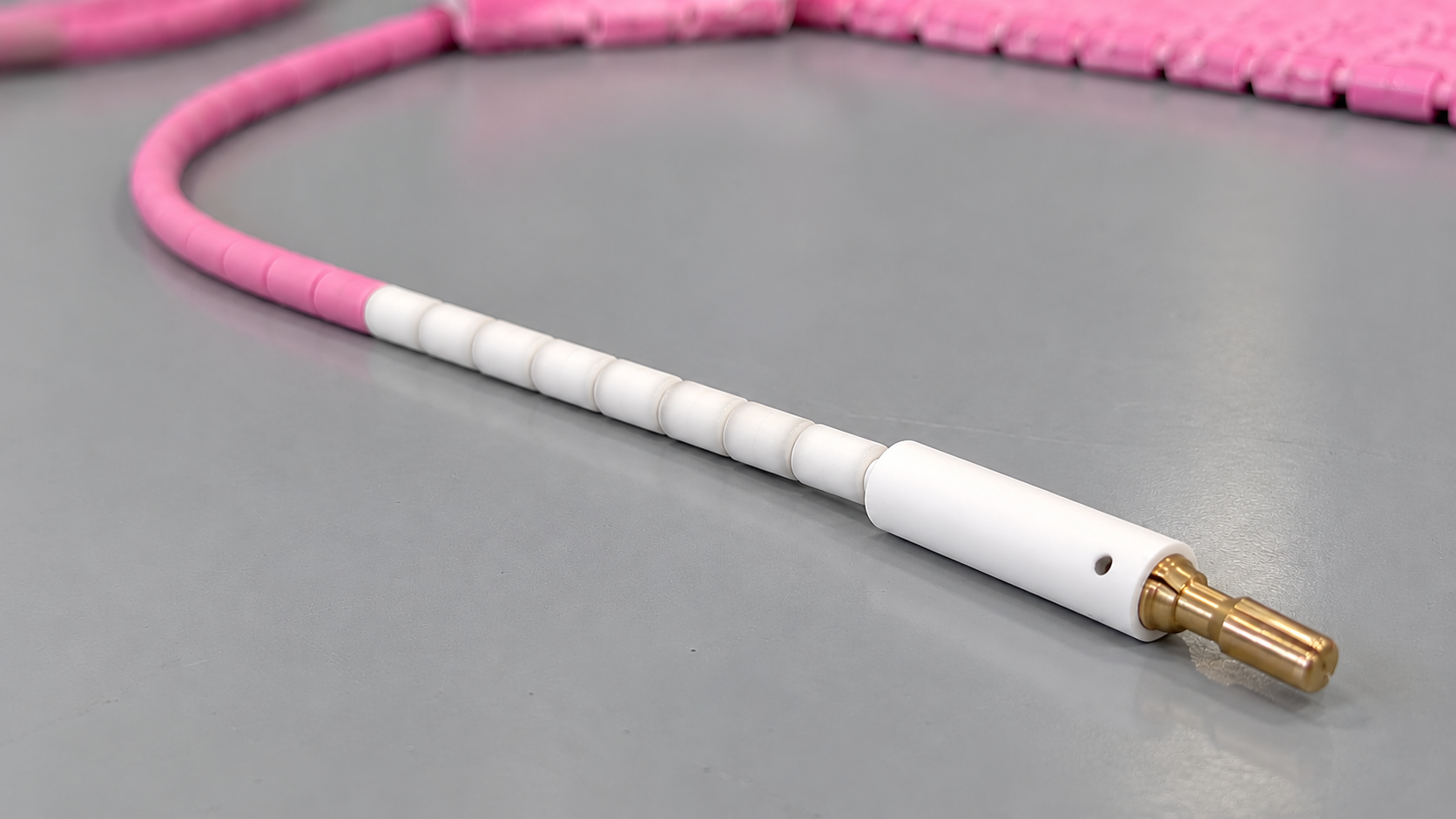

Constructed with high-alumina ceramic beads, a flexible nickel-chromium core wire, and welded nickel tails, each pad provides reliable heating and secure electrical connections.
Rated for temperatures up to 1050°C (1922°F), these pads are ideal for weld preheating, post-weld heat treatment (PWHT), and controlled heating of pipes, vessels, and steel fabrications.
Key Benefits:
Time Savings.

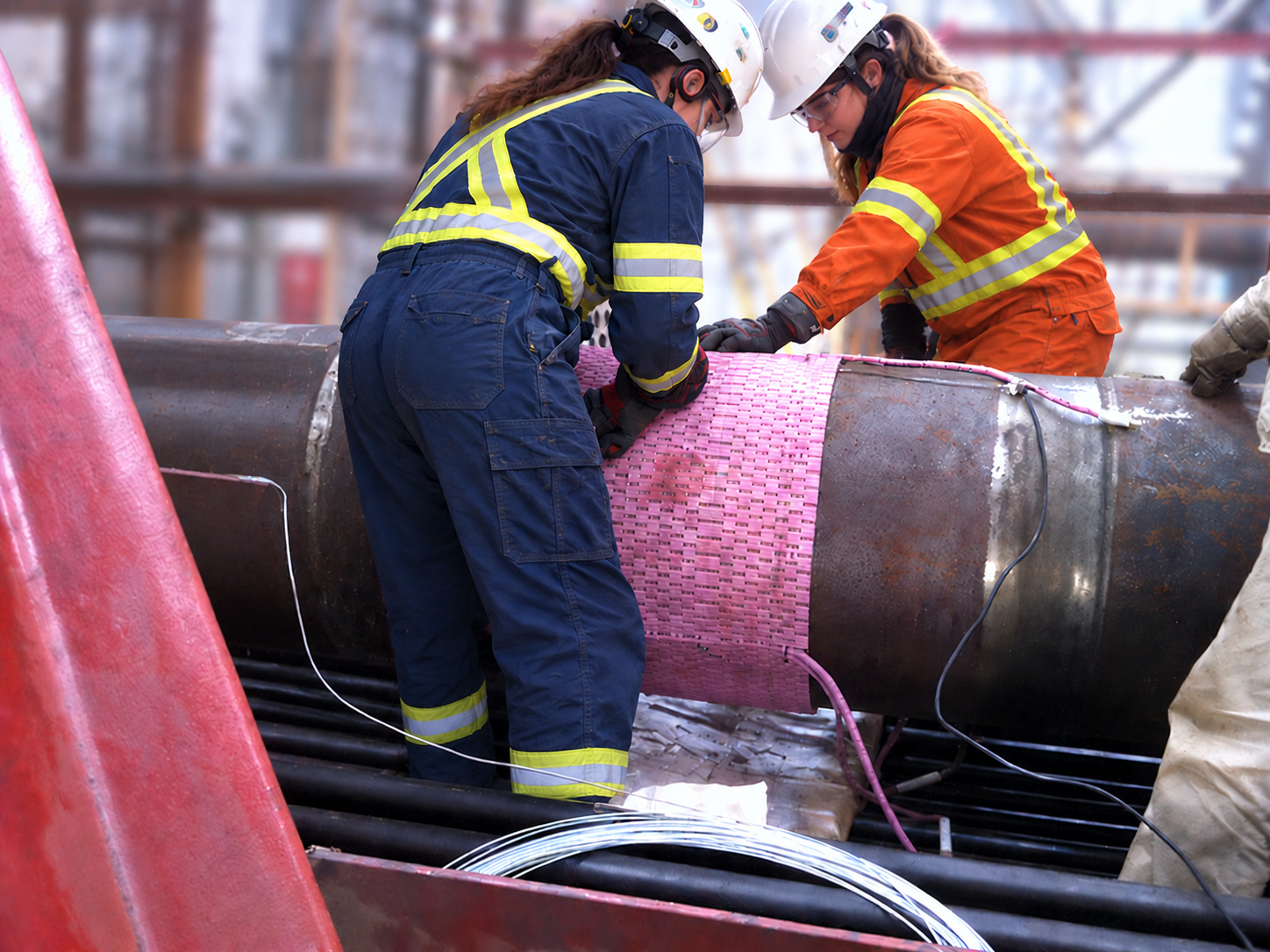

Fast, simplified installation reduces setup time.
Superior Flexibility.
Bend or roll to fit complex surfaces.
Versatile Applications.
Ideal for preheating before and during welding.
Durable Construction.
Built for demanding industrial environments.
Flexible Ceramic Pads-FCP
| Volts | 80 volts |
| Amps | 45 amps |
| Power | 3.6 Kw |
| Wire : | 80/20 NiCr wire |
| FCP Code: | CP3 |
| Heater Dimensions: | 3" × 39" |
| Voltage: | 80 V |
| Power: | 3.6 kW |
| Current: | 45 A |
| Heating Wire: | 80:20 NiCr WIRE |
| FCP Code: | CP4 |
| Heater Dimensions: | 4" × 29" |
| Voltage: | 80 V |
| Power: | 3.6 kW |
| Current: | 45 A |
| Heating Wire: | 80:20 NiCr WIRE |
| FCP Code: | CP6 |
| Heater Dimensions: | 6" × 19.5" |
| Voltage: | 80 V |
| Power: | 3.6 kW |
| Current: | 45 A |
| Heating Wire: | 80:20 NiCr WIRE |
| FCP Code: | CP8 |
| Heater Dimensions: | 8" × 14.5" |
| Voltage: | 80 V |
| Power: | 3.6 kW |
| Current: | 45 A |
| Heating Wire: | 80:20 NiCr WIRE |
| FCP Code: | CP10 |
| Heater Dimensions: | 10" × 12.5" |
| Voltage: | 80 V |
| Power: | 3.6 kW |
| Current: | 45 A |
| Heating Wire: | 80:20 NiCr WIRE |
| FCP Code: | CP12 |
| Heater Dimensions: | 12" × 9.75" |
| Voltage: | 80 V |
| Power: | 3.6 kW |
| Current: | 45 A |
| Heating Wire: | 80:20 NiCr WIRE |
| FCP Code: | CP15 |
| Heater Dimensions: | 15" × 8" |
| Voltage: | 80 V |
| Power: | 3.6 kW |
| Current: | 45 A |
| Heating Wire: | 80:20 NiCr WIRE |
| FCP Code: | CP18 |
| Heater Dimensions: | 18" × 6.5" |
| Voltage: | 80 V |
| Power: | 3.6 kW |
| Current: | 45 A |
| Heating Wire: | 80:20 NiCr WIRE |
| FCP Code: | CP21 |
| Heater Dimensions: | 21" × 5.75" |
| Voltage: | 80 V |
| Power: | 3.6 kW |
| Current: | 45 A |
| Heating Wire: | 80:20 NiCr WIRE |
| FCP Code: | CP24 |
| Heater Dimensions: | 24" × 5" |
| Voltage: | 80 V |
| Power: | 3.6 kW |
| Current: | 45 A |
| Heating Wire: | 80:20 NiCr WIRE |
| FCP Code: | CP29 |
| Heater Dimensions: | 29" × 4" |
| Voltage: | 80 V |
| Power: | 3.6 kW |
| Current: | 45 A |
| Heating Wire: | 80:20 NiCr WIRE |
| FCP Code: | CP36 |
| Heater Dimensions: | 36" × 3.75" |
| Voltage: | 80 V |
| Power: | 3.6 kW |
| Current: | 45 A |
| Heating Wire: | 80:20 NiCr WIRE |
| FCP Code: | CP72 |
| Heater Dimensions: | 72" × 1.75" |
| Voltage: | 80 V |
| Power: | 3.6 kW |
| Current: | 45 A |
| Heating Wire: | 80:20 NiCr WIRE |
